Urine Flow Measurement Made Accessible With UroFlow

If you are working with a persistent illness, the capacity to constantly check your signs is indispensable, assisting you attain valuable insights into what can make your physique tick – or, instead, mis-tick. Nevertheless, for many diseases, you require specialized tools to observe them, and it tends to be that you can only pay a visit to your medical doctor every so frequently. Fortunately, we hackers can figure out means to keep track of our disorders on our personal. With a condition termed BPH (Benign Prostate Hyperplasia), 1 of the methods to watch it is taking measurements of urinary move amount. Currently being in a position to consider these measurements at dwelling offers better insights, and, possessing observed flow level measurement devices to be prohibitively high-priced to even lease, [Jerry Smith] set out to develop his have.

This establish is truly created to be reproducible for anybody who wants these types of a product. Jerry has intricately documented the undertaking and its interior workings – the 31-web page doc incorporates full build guidance, BOM for buying, PCB description and pinout diagrams, calibration and validation guidelines, and even software package flowcharts the GitHub repo has all the things else you could have to have. We’re pleasantly amazed – this total of documentation is not generally seen in hacker assignments, and is even additional valuable considering that this is a medical machine that other hackers in need will want to reproduce.

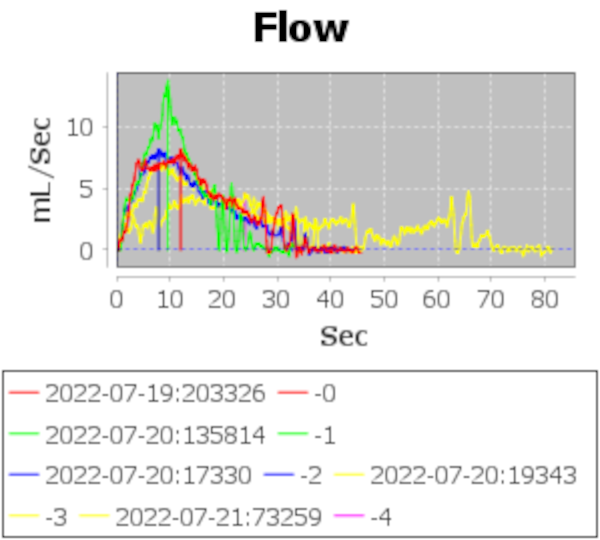

Graph titled "Flow", with X axis saying "seconds" and Y axis saying "ml/Sec". There's differently colored plots on the graph, each apparently corresponding to a different measurement.For the hardware, [Jerry] took a modest digital scale of a certain product and reused its load mobile-centered weighing system making use of an HX711 amplifier, replacing the monitor and introducing an excess box for control electronics. With an Arduino MKR1010 as brains of the procedure, the hardware’s there to log flow info, to begin with recorded on to the SD card, with WiFi connectivity to transfer the information to a laptop for plotting a DS3234 RTC breakout allows hold monitor of the time, and a custom PCB ties all of these alongside one another. All of these issues are easy to put with each other, in no tiny portion owing to the extensive guidelines offered.

If the subject matter feels common, it is mainly because we have covered a various gadget with the exact purpose a couple of several years ago. Viewing hackers choose matters into their personal fingers when it comes to medical devices is endearing. It’s not just about the price tag and generally, high-quality – there is full nations where by medical tech availability is a challenge, and open up-resource know-how can have an outsized influence in these types of destinations. Even in technologically highly developed international locations, there’s huge gaps when it will come to personal-use health-related know-how – for occasion, we have viewed hard work on energy by hackers constructing artificial pancreas options for diabetic issues management, a problem extended overdue to be tackled by providers in the field. For those of us without the need of serious conditions, there is still gains to monitoring our health – hacking current fitness trackers or creating our have to study a lot more about how our bodies functionality.
